ARMARRAY Standard Deployment Appliance

S32

A compact 32-node real-device ARM infrastructure appliance for mobile operations, testing, automation, and SIM-based workflows.

Product Definition

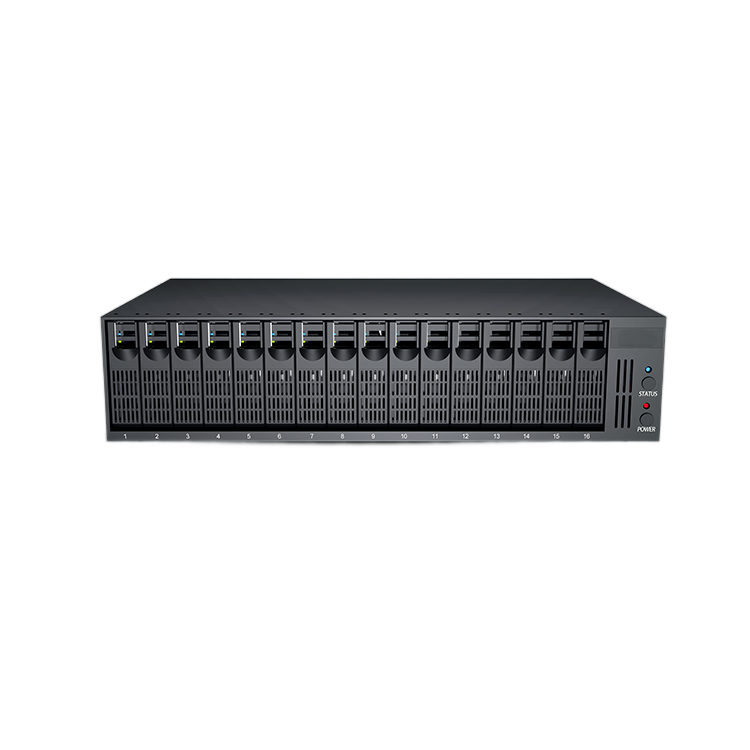

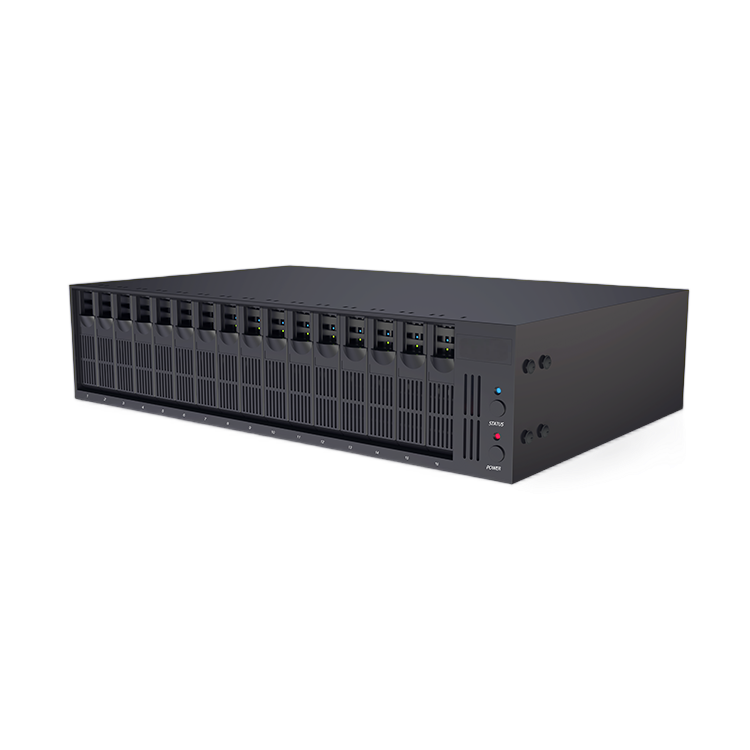

32 physical nodes in one modular chassis.

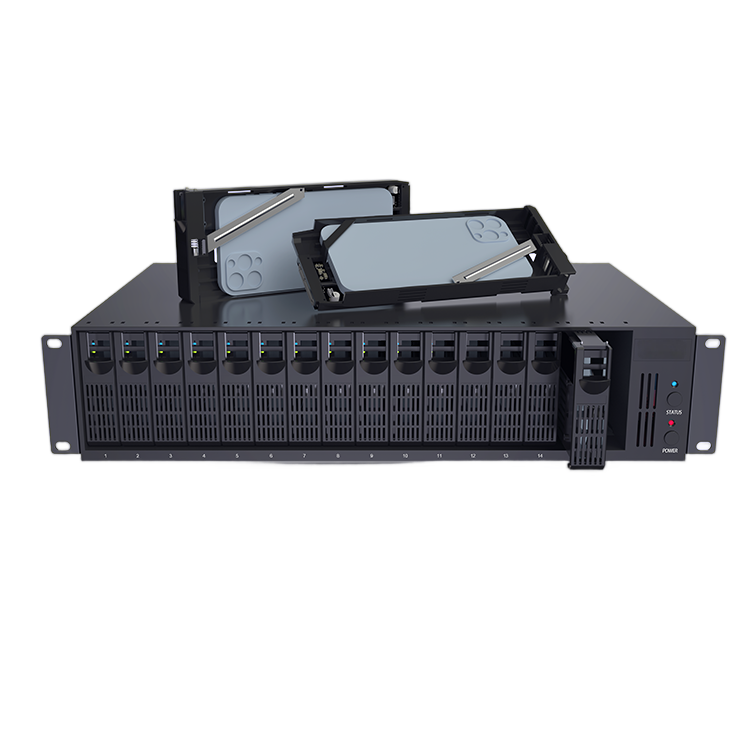

S32 is built around 16 dual-SoC boards. Each board provides two physical nodes, creating a standard 32-node real-device deployment unit.

ModelARMARRAY S32
Product classReal-device ARM Infrastructure
Physical nodes32
Board structure16 Dual-SoC Boards
PlatformMediaTek G99-class 4G Platform
SIMPhysical SIM Support
ARMARRAY S32 chassis schematic with board 01 to board 16
S32 architecture diagram

Architecture

From operator layer to real physical nodes.

The system combines management, communication, modular board structure, physical ARM nodes, power, and cooling into one deployment unit.

Technical Specifications

Core parameters for deployment planning.

Form factorNon-standard 2U chassis
Dimensions436.5mm x 281mm x 99.5mm
Communication modesHUB / OTG
HUB modeUSB 2.0; downstream 480Mbps / 12Mbps / 1.5Mbps; USB1.1 support
OTG mode1Gbps uplink; 100Mbps downlink; DHCP or static IP
VLANIEEE 802.1Q VLAN support

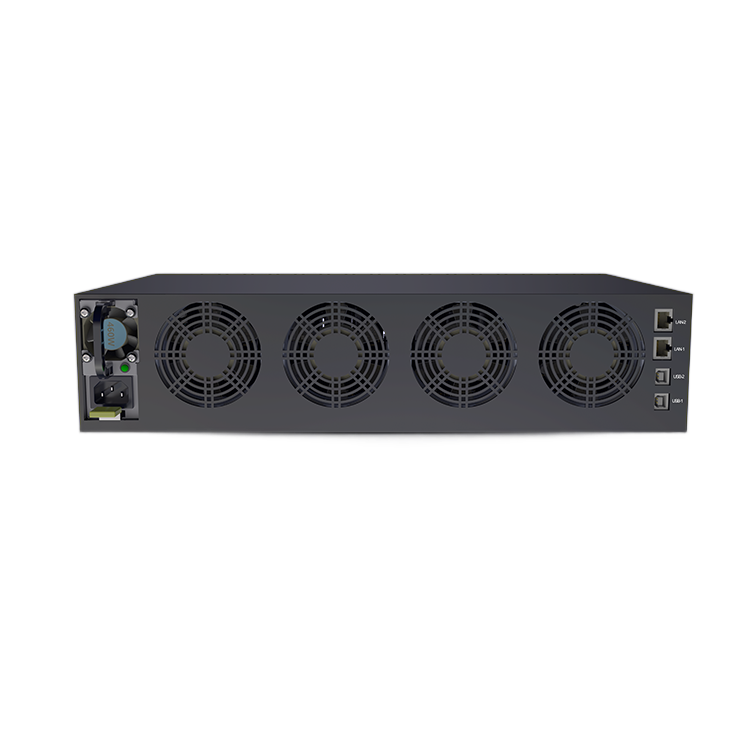

InterfacesUSB 2.0 / RJ45 Gigabit Ethernet
Power inputAC100-240V
Power outputDC12V 38.5A; max 460W
Cooling options4 x 8025 / 2500rpm quiet fans; 4 x 8038 / 3500rpm high-airflow fans
WeightApprox. 8kg including carton, EPE foam, power cable, and accessories

Resources

Download the S32 datasheet.

ARMARRAY S32 Datasheet v2.3

Product overview, architecture, specifications, deployment scenarios, and contact information.

Download PDF
