Products / S Series
ARMARRAY Standard Deployment Appliance
A compact 32-node real-device ARM infrastructure appliance for mobile operations, testing, automation, and SIM-based workflows.
Product Definition
S32 is built around 16 dual-SoC boards. Each board provides two physical nodes, creating a standard 32-node real-device deployment unit.
| Model | ARMARRAY S32 |
| Product class | Real-device ARM Infrastructure |
| Physical nodes | 32 |
| Board structure | 16 Dual-SoC Boards |
| Platform | MediaTek G99-class 4G Platform |
| SIM | Physical SIM Support |
Architecture
The system combines management, communication, modular board structure, physical ARM nodes, power, and cooling into one deployment unit.
Technical Specifications
| Form factor | Non-standard 2U chassis |
| Dimensions | 436.5mm x 281mm x 99.5mm |
| Communication modes | HUB / OTG |
| HUB mode | USB 2.0; downstream 480Mbps / 12Mbps / 1.5Mbps; USB1.1 support |
| OTG mode | 1Gbps uplink; 100Mbps downlink; DHCP or static IP |
| VLAN | IEEE 802.1Q VLAN support |
| Interfaces | USB 2.0 / RJ45 Gigabit Ethernet |
| Power input | AC100-240V |
| Power output | DC12V 38.5A; max 460W |
| Cooling options | 4 x 8025 / 2500rpm quiet fans; 4 x 8038 / 3500rpm high-airflow fans |
| Weight | Approx. 8kg including carton, EPE foam, power cable, and accessories |
Modular Architecture

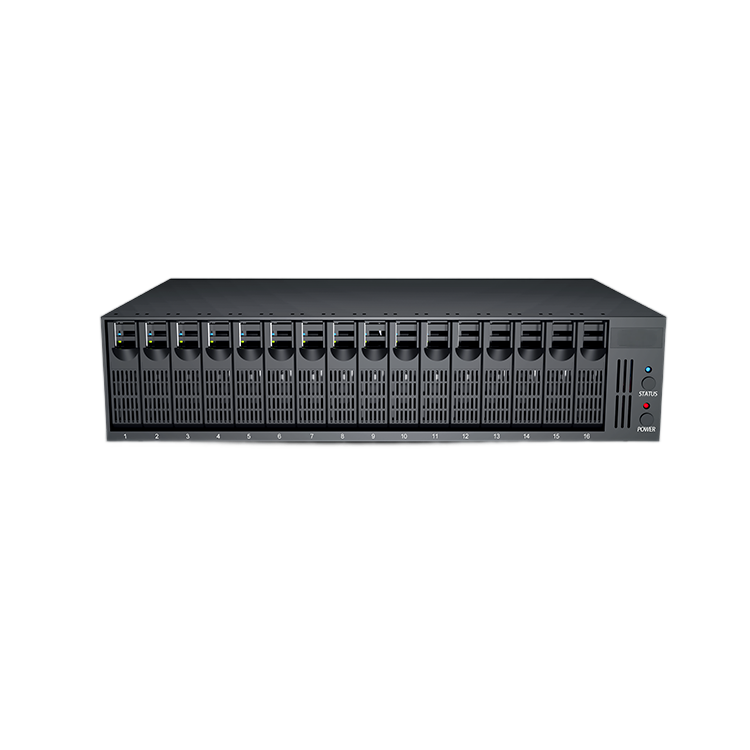

Hot-swappable modular boards provide physical ARM nodes in a maintainable chassis design.
Enterprise Infrastructure

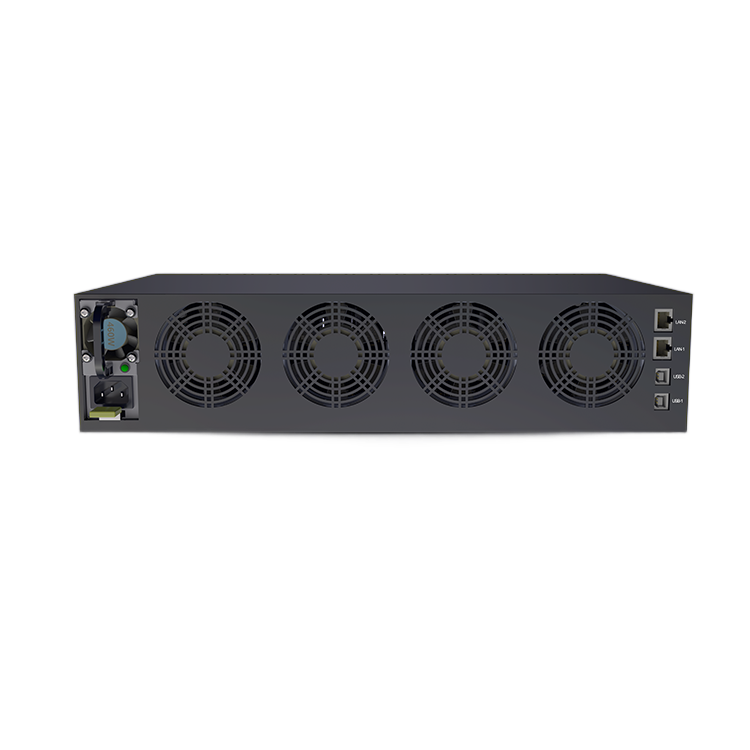

Rear airflow, industrial power, and network interfaces support stable enterprise deployment.
Applicable Scenarios
Resources
Product overview, architecture, specifications, deployment scenarios, and contact information.
Contact ARMARRAY
Choose the channel that works best for you. We usually start with your target node count, deployment region, and workflow.
